Eight-sided double-row square corner outer wire + square corner outer wire
Category ：
Key Word ：manifold
- PRODUCT DESCRIPTION
-
- 商品名称: Eight-sided double-row square corner outer wire + square corner outer wire

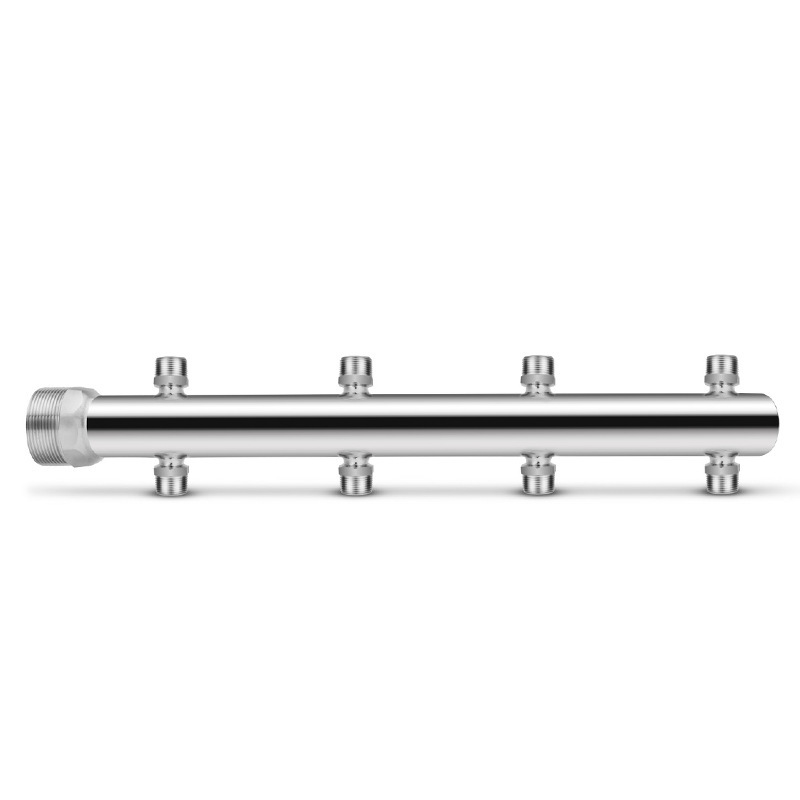

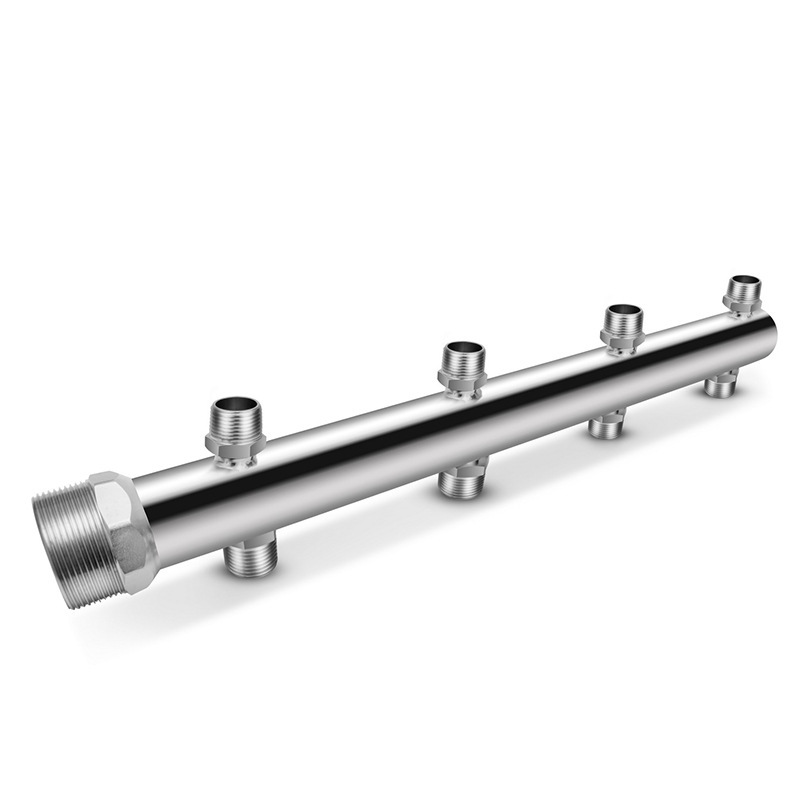

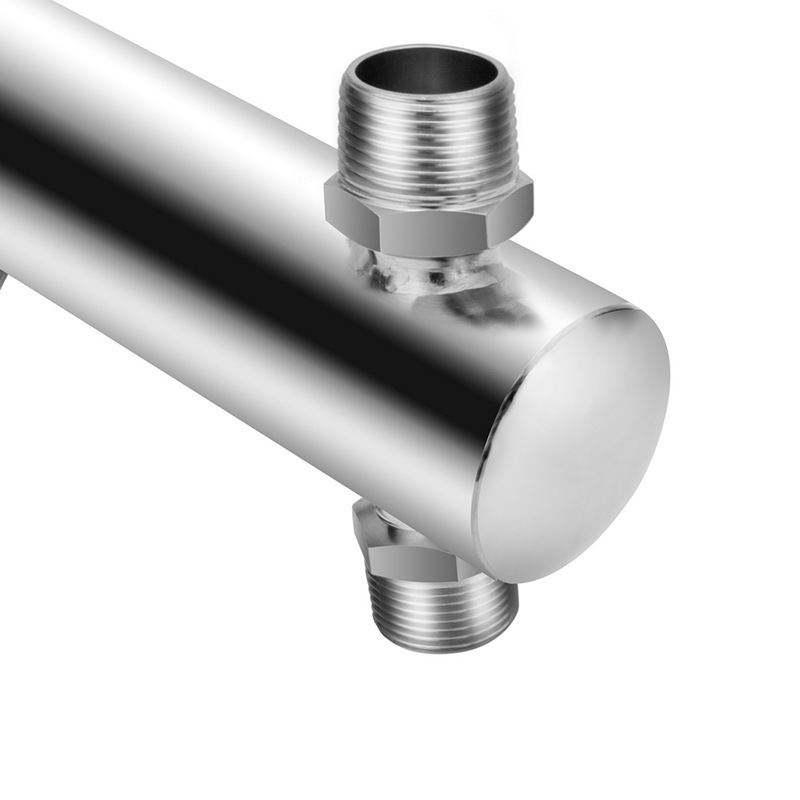

8-port double-row double-opening stainless steel square tooth water distributor
Description
Product Name:
8-port double-row double-opening stainless steel square tooth water distributor
Product Specification:
DN15-DN100
Material:
Stainless Steel 304, 316
Product Size:
See attached drawing
Applications:
Widely used, suitable for cold and hot water, drinking water, heating, fire protection, gas and other civil low-pressure fluid transportation
Serial Number
Product Specification
Main Water Pipe Size (mm)
Inlet
Outlet
Number of Outlets
Outlet Spacing (mm)
1
DN32×20×N
Φ40*1.2
11/4” Male Thread
3/4” Male Thread
N
150, 180
2
DN40×20×N
Φ50.8*1.2
11/2” Male Thread
3/4” Male Thread
N
150, 180
3
DN50×20×N
Φ60.3*1.5
Φ50.8*1.2
2” Male Thread
3/4” Male Thread
N
150, 180
4
DN65×20×N
Φ76.1*1.5
21/2” Male Thread
3/4” Male Thread
N
200
5
DN25×20×N
40*1.2
1” Male Thread
1/2” Male Thread
N
50
Products
- 不锈钢分水器
Customer feedback and packaging and transportation
Double card compression technology originating from Germany, the true green pipeline of the 21st century
01
Piping material dropping:
Measure the size of piping, use electric mechanical toothed saws or manual cutters to cut pipes, and prohibit toothless cutting.
02
Cleaning burrs:
Use specialized tools to remove burrs on the end face of the pipe, or use tools such as files and scrapers to remove them.
03
Check the sealing ring:
Check if the sealing ring is aligned correctly Fit the groove?
04
Insert the tube
The depth of the pipe inserted into the fitting socket should match the marked line, and the adjustment amount should be less than 3mm. Please ensure the insertion depth of the pipe and do not damage the sealing ring inside the fitting.
05
Compression operation
Use specialized tools for crimping operations.
06
Finished product
The final product should have a neat and even compression section.
