304 stainless steel double compression 90-degree elbow, food hygiene grade water pipe joint, right-angle elbow for tap water
Category ：
Key Word ：manifold
- PRODUCT DESCRIPTION
-
- 商品名称: 304 stainless steel double compression 90-degree elbow, food hygiene grade water pipe joint, right-angle elbow for tap water

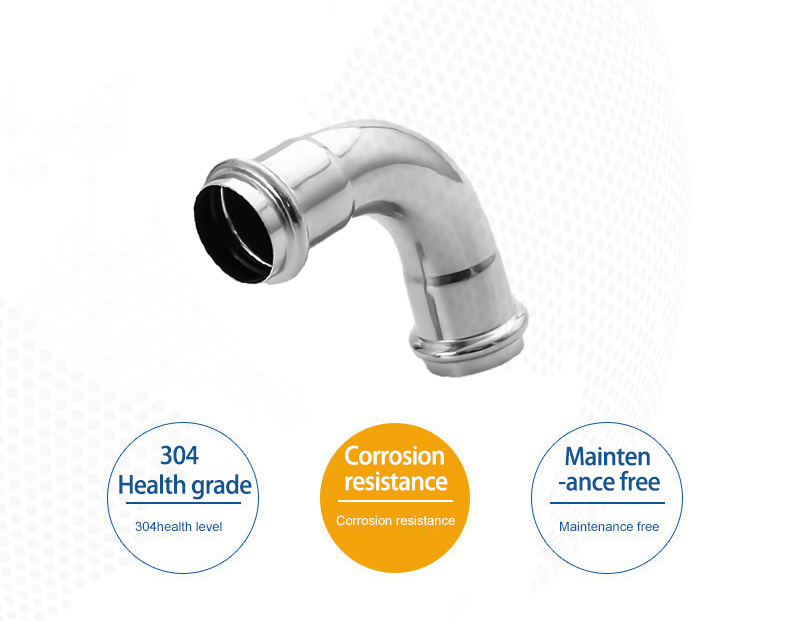

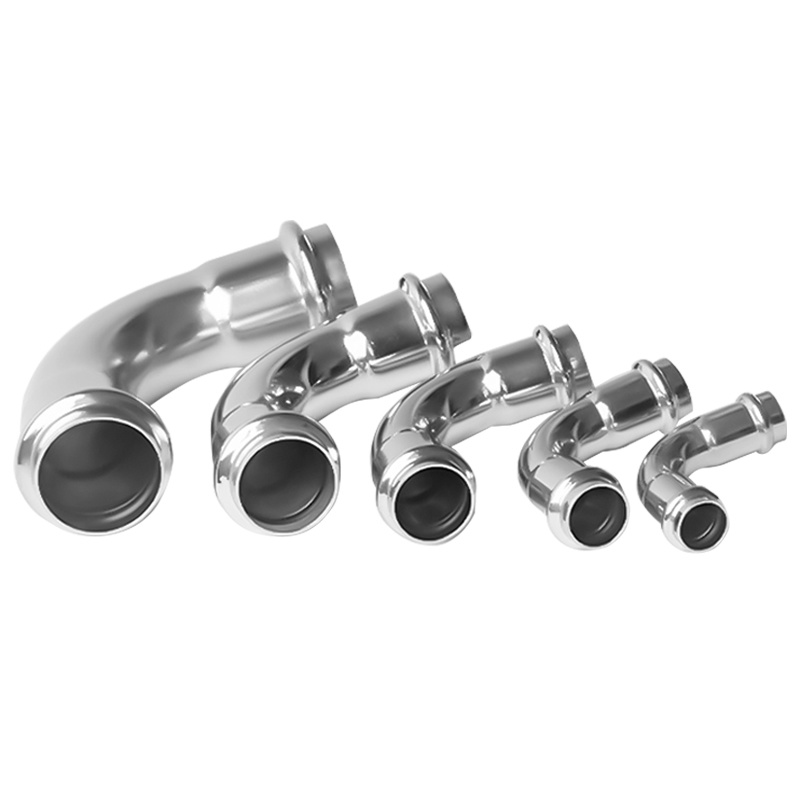

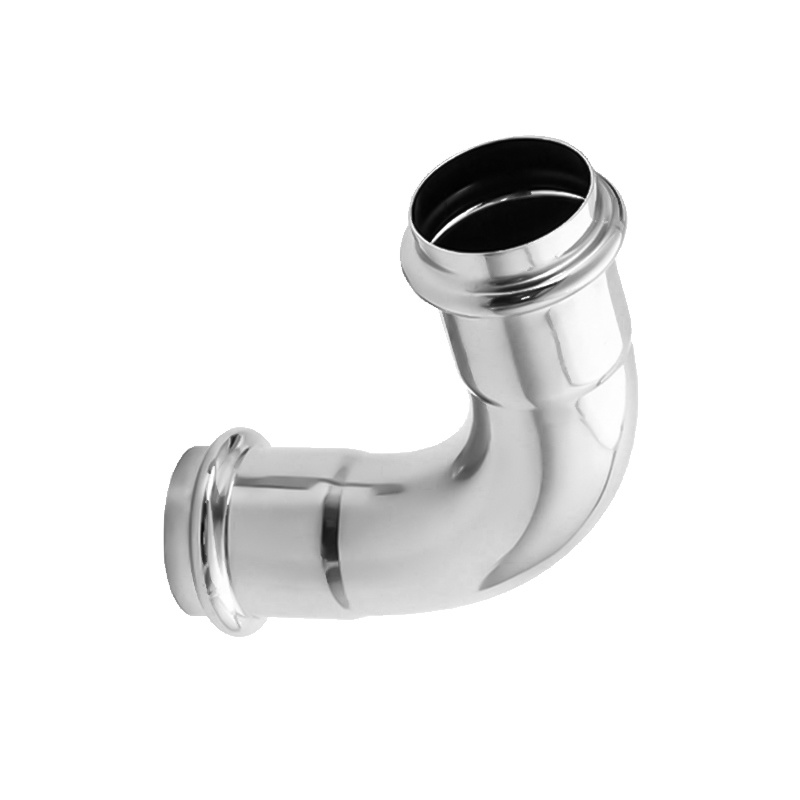

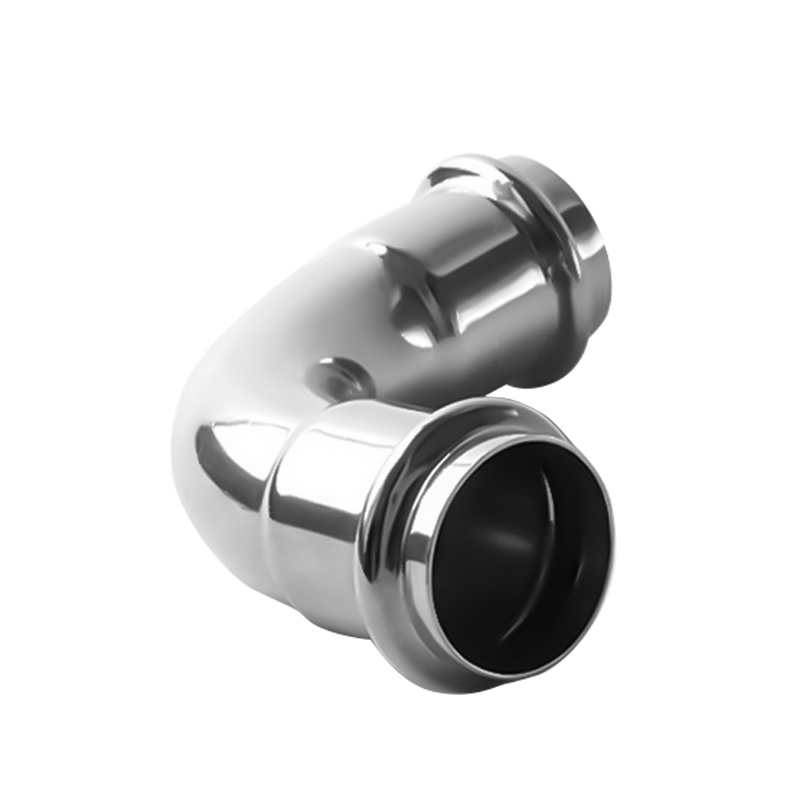

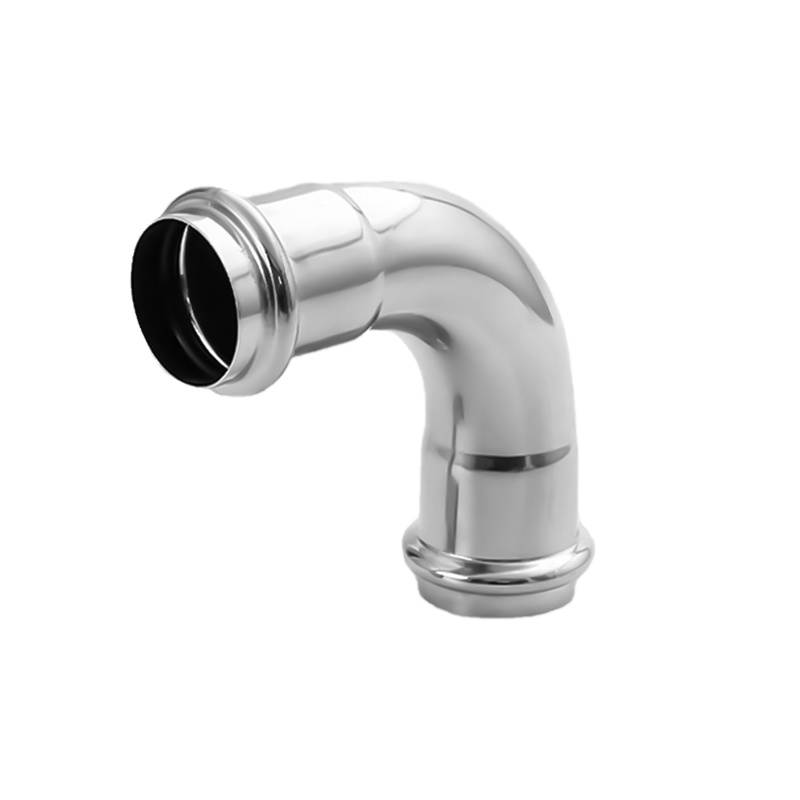

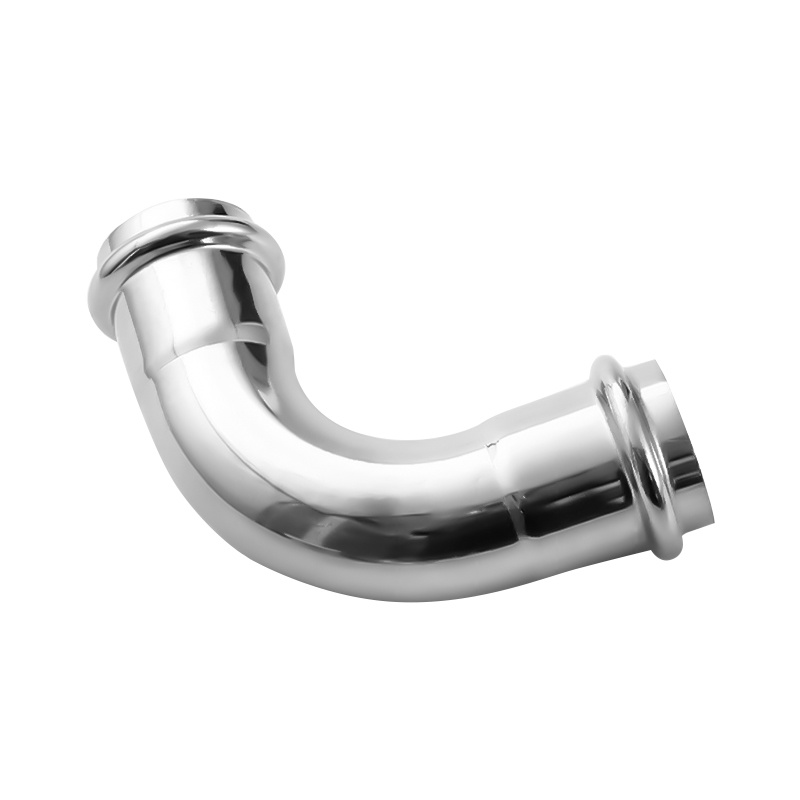

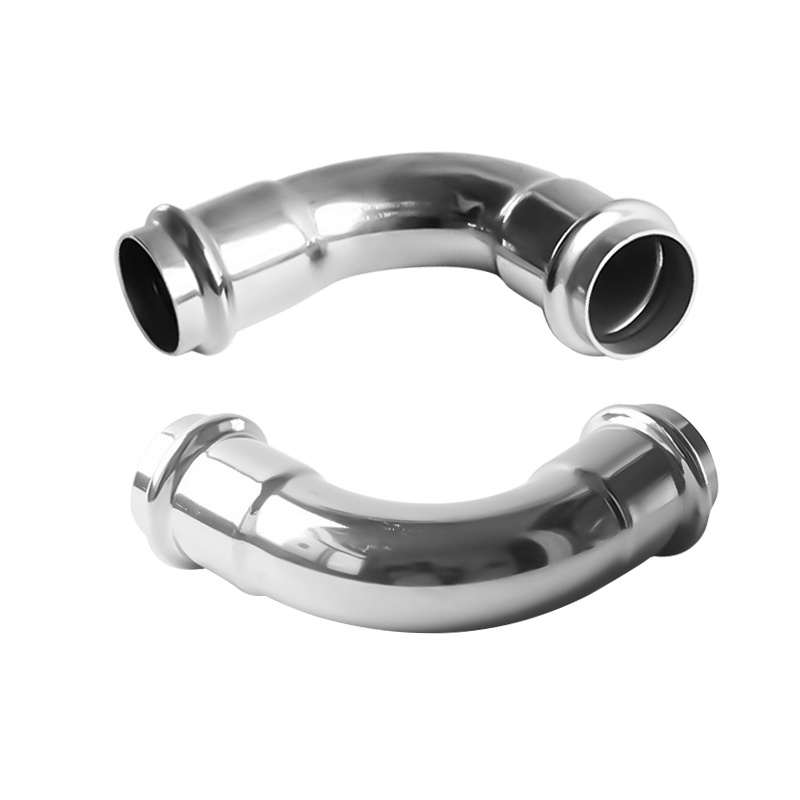

304 stainless steel double compression 90-degree elbow
Stainless Steel Compression pipe fittings
Gongyu Stainless Steel Brand Manufacturer
100% factory direct sales, at least lower than similar products in the market 20%
Description
Product Name:
304 stainless steel double compression 90-degree elbow
Product Specification:
DN15-DN100
Material:
Stainless Steel 304, 316L
Product Size:
See attached drawing
Applications:
Widely used, suitable for cold and hot water, drinking water, heating, fire protection, gas and other civil low-pressure fluid transportation
Serial Number
Product Specification
Main Water Pipe Size (mm)
Inlet
Outlet
Number of Outlets
Outlet Spacing (mm)
1
DN25
Φ25.4*1.2
1” Female Thread
1/2” Male Thread
N
150, 180
2
DN32
Φ32*1.2
1-1/4” Female Thread
3/4” Male Thread
N
150, 180
3
DN40
Φ40*1.2
1-1/2”Female Thread
3/4” Male Thread
N
150, 180
4
DN50
Φ50.8*1.5
2”Female Thread
3/4” Male Thread
N
200
5
DN65
Φ76.1*2.0
2-1/2”Female Thread
3/4” Male Thread
N
200
Products
- 不锈钢分水器
Customer feedback and packaging and transportation
Double card compression technology originating from Germany, the true green pipeline of the 21st century
01
Piping material dropping:
Measure the size of piping, use electric mechanical toothed saws or manual cutters to cut pipes, and prohibit toothless cutting.
02
Cleaning burrs:
Use specialized tools to remove burrs on the end face of the pipe, or use tools such as files and scrapers to remove them.
03
Check the sealing ring:
Check if the sealing ring is aligned correctly Fit the groove?
04
Insert the tube
The depth of the pipe inserted into the fitting socket should match the marked line, and the adjustment amount should be less than 3mm. Please ensure the insertion depth of the pipe and do not damage the sealing ring inside the fitting.
05
Compression operation
Use specialized tools for crimping operations.
06
Finished product
The final product should have a neat and even compression section.
