304 stainless steel elbow, 90-degree right-angle flange, short elbow, welded seamless joint, sanitary grade water pipe fittings
Category ：
Key Word ：manifold
- PRODUCT DESCRIPTION
-
- 商品名称: 304 stainless steel elbow, 90-degree right-angle flange, short elbow, welded seamless joint, sanitary grade water pipe fittings

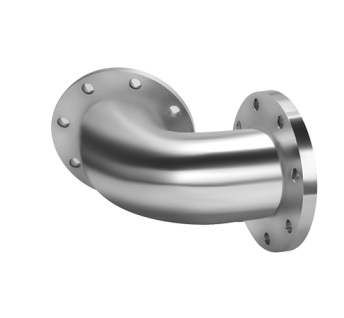

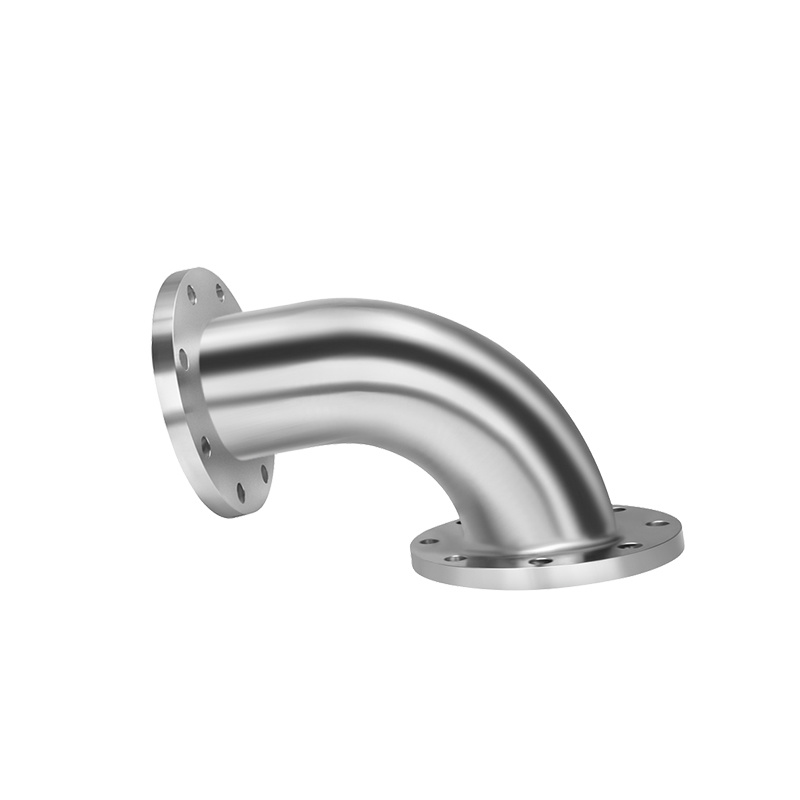

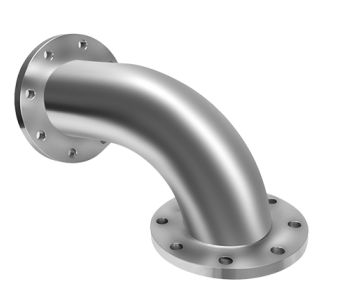

Stainless steel flange elbow
Diagram of water injection installation
Description
Product Name:
Stainless steel flange elbow
Product Specification:
DN15-DN100
Material:
Stainless steel 304, 316L
Product Size:
See attached drawing
Applications:
It is widely applied and suitable for the transportation of low-pressure fluids in civil applications such as cold and hot water, heating, fire protection, and gas
Serial Number
Product Specification
Main Water Pipe Size (mm)
Inlet
Outlet
Number of Outlets
Outlet Spacing (mm)
1
DN25×20×N
Ф25.4*1.2
1” 内螺纹
1/2” 内螺纹
输入： N
150, 180
2
DN32×20×N
Ф32*1.2
1-1/4” 内螺纹
3/4” 内螺纹
输入： N
150, 180
3
DN40×20×N
Ф40*1.2
1-1/2”内螺纹
3/4” 内螺纹
输入： N
150, 180
4
DN50×20×N
Φ50.8*1.5
2”内螺纹
3/4” 内螺纹
输入： N
200
5
DN65×20×N
Φ76.1*2.0
2-1/2英寸内螺纹
3/4” 内螺纹
输入： N
200
Stainless Steel Threaded Fitting is designed for reliable pipeline connections, featuring a 304 stainless steel elbow with a 90-degree right-angle flange structure. This short elbow adopts a welded seamless joint design, offering excellent corrosion resistance, durability, and stable performance.
With sanitary-grade material and precise manufacturing, the fitting is suitable for water pipes, food processing, industrial systems, and other applications requiring clean and secure connections. Its smooth surface, strong structure, and easy installation help reduce maintenance needs while improving pipeline efficiency.
Manufactured with strict quality control, this stainless steel fitting provides customers with a dependable solution for modern piping systems, combining safety, performance, and long service life.
Customer feedback and packaging and transportation
Double card compression technology originating from Germany, the true green pipeline of the 21st century
01
Piping material dropping:
Measure the size of piping, use electric mechanical toothed saws or manual cutters to cut pipes, and prohibit toothless cutting.
02
Cleaning burrs:
Use specialized tools to remove burrs on the end face of the pipe, or use tools such as files and scrapers to remove them.
03
Check the sealing ring:
Check if the sealing ring is aligned correctly Fit the groove?
04
Insert the tube
The depth of the pipe inserted into the fitting socket should match the marked line, and the adjustment amount should be less than 3mm. Please ensure the insertion depth of the pipe and do not damage the sealing ring inside the fitting.
05
Compression operation
Use specialized tools for crimping operations.
06
Finished product
The final product should have a neat and even compression section.
